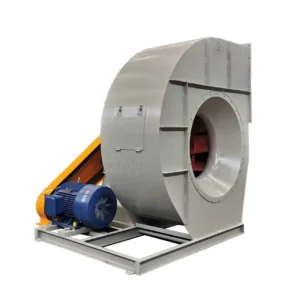

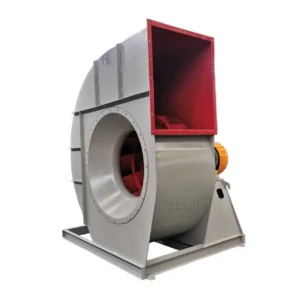

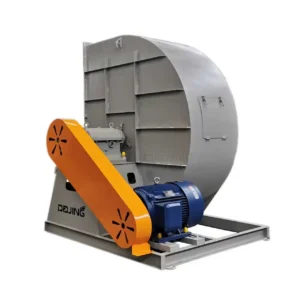

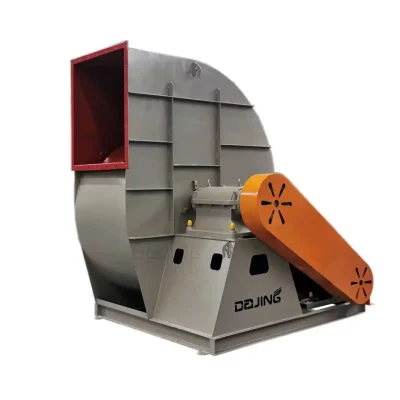

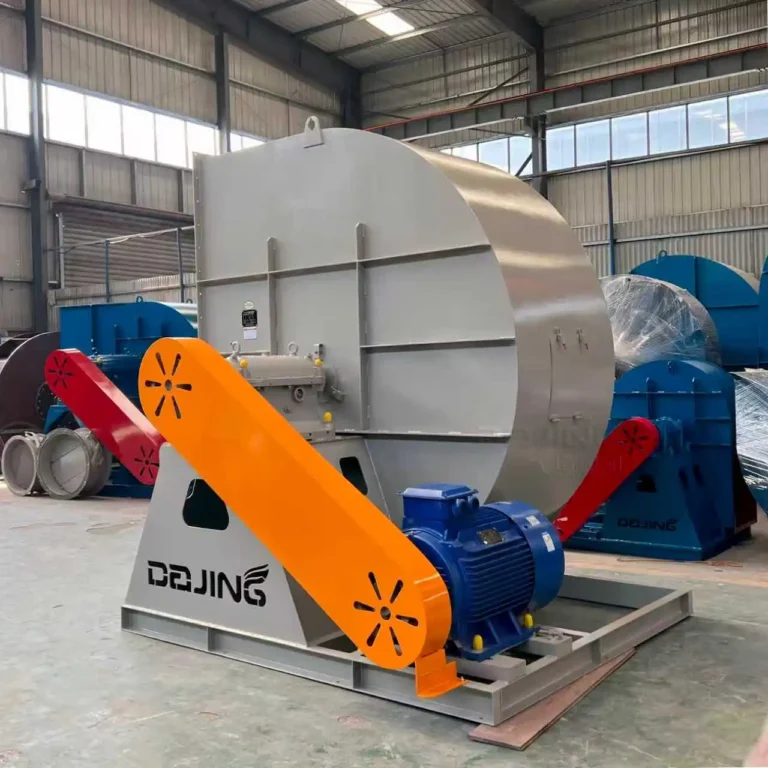

4-79 Centrifugal blower
This blower can be used for indoor ventilation and air exchange in general factories and large buildings.
It is suitable for conveying air and other gases that are non-self-igniting, non-explosive, non-fibrous, harmless to the human body, and non-corrosive.
It can also be used for gases with similar properties.
Specifications:
压力范围： 304 – 2679 帕
风量： 1970 – 71600 立方米/小时
叶轮直径： 400 – 1800 毫米
转速： 520 – 2900 转/分
功率： 0.75 – 55 千瓦
驱动方式：直接驱动/皮带驱动
介质：空气或无腐蚀性、不易燃、无毒气体
CONFIGURATION OPTIONS
1. CONSTRUCTION & MATERIALS
-
Impeller: Carbon steel; optional FRP, stainless steel, rubber lining, wear-resistant or ceramic coating.
-
Casing / Damper: Standard carbon steel; optional FRP or stainless steel.
-
Main Shaft: High-strength alloy steel.
-
Bearings: ZWZ / SKF / FAG / NSK.
2.SYSTEM & ACCESSORIES
-
Motor: High-efficiency Chinese brand or ABB / Siemens / WEG.
-
Optional Parts: Base frame, silencer, flexible joint, damper, rain cover, shock absorber, sensors, inverter, soft starter, monitoring instruments.
| Serial number | Machine number | Rotating Speed (r/min) | Full Pressure (Pa) | Air Volume (m³/h) | Power (kW) |
|---|---|---|---|---|---|
| 1 | 3A | 2900 | 1196–726 | 1970–3830 | 1.5 |
| 2 | 3.5A | 1450 | 304–177 | 990–1910 | 0.75 |
| 3 | 3.5A | 2900 | 1628–981 | 1810–3480 | 1.1 |
| 4 | 4A | 1450 | 412–245 | 1560–3040 | 1.1 |
| 5 | 4A | 2900 | 2138–1275 | 4670–9080 | 5.5 |
| 6 | 4.5A | 1450 | 530–324 | 2330–4540 | 1.5 |
| 7 | 4.5A | 2900 | 2679–1618 | 6640–12920 | 11.0 |
| 8 | 5A | 1450 | 834–500 | 4560–8680 | 3.0 |
| 9 | 5A | 2900 | 3334–2001 | 9100–17720 | 15.0 |
| 10 | 6A | 1450 | 530–314 | 5230–10100 | 1.5 |
| 11 | 6A | 960 | 2501–1481 | 15580–30200 | 30.0 |
| 12 | 6A | 1800 | 1971–1167 | 13850–26850 | 15.0 |
| 13 | 7C | 1250 | 1206–716 | 10820–20850 | 7.5 |
| 14 | 7C | 1000 | 971–549 | 9650–18600 | 5.5 |
| 15 | 7C | 800 | 777–461 | 8650–16800 | 4.0 |
| 16 | 7C | 710 | 628–378 | 7780–15100 | 3.0 |
| 17 | 7C | 600 | 500–294 | 6920–13440 | 2.2 |
| 18 | 7C | 500 | 392–235 | 6110–11900 | 1.5 |
| 19 | 8C | 1450 | 2491–1481 | 21100–39400 | 30.0 |
| 20 | 8C | 1270 | 1569–932 | 17100–31100 | 15.0 |
| 21 | 8C | 1120 | 1226–726 | 15600–29700 | 11.0 |
| 22 | 8C | 1000 | 971–579 | 13450–26400 | 7.5 |
| 23 | 8C | 900 | 785–471 | 12100–23500 | 5.5 |
| 24 | 8C | 800 | 613–368 | 10760–20880 | 4.0 |
| 25 | 8C | 710 | 490–294 | 9520–18300 | 3.0 |
| 26 | 8C | 630 | 387–232 | 8080–16450 | 2.2 |
| 27 | 10C | 1300 | 2699–1775 | 38500–71600 | 55.0 |
| 28 | 10C | 1170 | 2118–1442 | 34600–57100 | 37.0 |
| 29 | 10C | 1050 | 1540–1090 | 29700–49000 | 30.0 |
| 30 | 10C | 940 | 1363–932 | 27850–45900 | 18.5 |
| 31 | 10C | 830 | 1095–726 | 24550–40500 | 15.0 |
| 32 | 10C | 710 | 843–579 | 19100–32200 | 11.0 |
| 33 | 10C | 630 | 667–461 | 15900–28200 | 7.5 |
| 34 | 10C | 580 | 502–353 | 17160–28300 | 5.5 |
| 35 | 10C | 520 | 412–284 | 15400–25400 | 4.0 |
