Wear resistant blower

Wear resistant blower

Designed for gases mixed with hard, abrasive dust and particles, this wear-resistant centrifugal blower is ideal for material conveying, industrial dust collection, boiler induced draft, cement and steel production, sintering and coking lines. With thickened impeller and casing, replaceable anti-wear liners/ceramic patches, and optimized sealing, it maintains high efficiency and long service life under erosion, high-temperature and light-corrosive conditions. Handles non-self-igniting, non-explosive, non-viscous gases for either supply or exhaust ventilation.

Specifications:

  • Pressure: ≤ 15,000 Pa

  • Temperature: up to 300 °C

  • Power: up to 3,000 kW

  • Drive type: Direct / Coupling / Belt driven

  • Cooling: Air / Water / Oil cooling (optional).

CONFIGURATION OPTIONS

1. CONSTRUCTION & MATERIALS

  • Impeller & Casing: Thickened wear-resistant construction; build-up surfacing on blade working surfaces and wheel surfaces to resist erosion/abrasion; optional wear-resistant liners / ceramic patches per working conditions.

  • Materials (optional): Carbon steel (standard); FRP / stainless steel / rubber lining / high-temperature alloy available as required.

  • Main Shaft: High-strength alloy steel.

  • Bearings: ZWZ / SKF / FAG / NSK.

2.SYSTEM & ACCESSORIES

  • Motor: Chinese famous brand or ABB / Siemens / WEG (customizable).

  • Optional Parts: Base frame, silencer, flexible joints, counter flanges, air damper with electric actuator, shock absorber, diaphragm/fluid coupling, motor rain cover, temperature & vibration sensors, soft starter / inverter, monitoring instruments.

Wear-resistant centrifugal blowers are widely used in thermal power plants as induced-draft and exhaust blowers, in steel blast-furnace systems, cement plants, kiln-tail sections, and other processes—such as ceramic production—where hard particles cause erosion and abrasion.

Under extreme conditions, blowers endure the harshest wear. Abrasive media carried in the airstream (e.g., clinker dust, quartz, corundum, wood and plastic shavings) continuously attack metal surfaces.

Such wear can disable high-value components in a short time and drive up operating costs. Investing in preventive protection is therefore highly cost-effective.

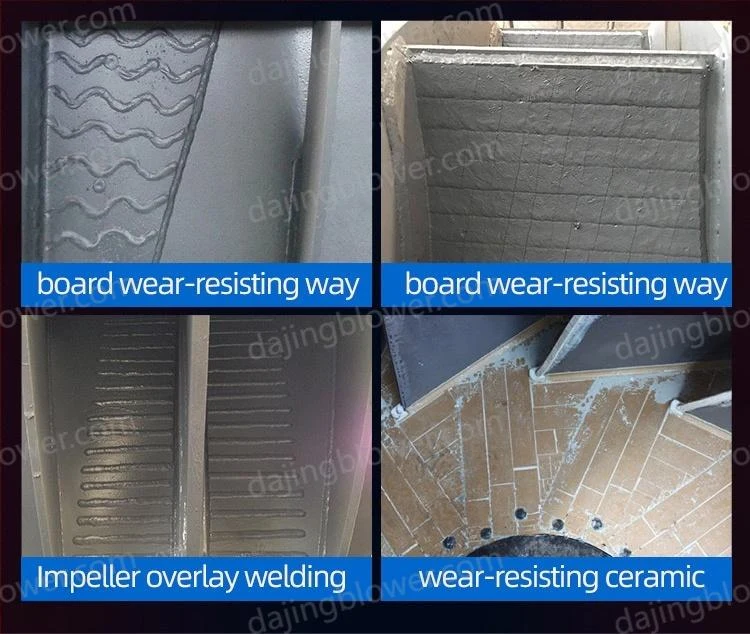

To enhance wear resistance, dajingblower designs protection into the blower from the start: selecting suitable materials, applying high-precision machining, optimizing blade geometry, and adding targeted anti-wear measures for the impeller and inner casing. These steps effectively extend service life and improve reliability.

measures:

Classified by wear-resistant blower material: titanium whining blower / wear-resistant surfacing / wear-resistant ceramics;

Classified by wear-resistant blower process: pulverized coal blower / circulation blower / sintering blower / blast furnace blower;

Professional Support Throughout Every Stage — From Selection to After-Sales Maintenance

At Dajing blower, we are dedicated to providing clients with a comprehensive, one-to-one service experience.
Our process covers every stage — pre-sale technical consultation, in-sale production tracking, and after-sale “Private Manager” support — ensuring efficiency, safety, and customer satisfaction.

Expert Technicians for Your Equipment Needs

Each customer is assigned a professional engineer responsible for model selection and technical consultation. We use advanced CAD and CAPP software to provide accurate blower designs and simulate performance for various working conditions.

In-Sale: Full-Process Tracking Service

Your designated project manager monitors the entire process — from material selection, manufacturing, and testing, to shipment and installation. We ensure every blower meets strict quality standards and delivery deadlines.

After-Sale: Private Manager Service

After delivery, Dajing provides 24/7 “Private Butler” after-sales support. Our service follows the “1224 Standard”: respond within 1 hour, provide feedback within 2 hours, and resolve within 24 hours.
