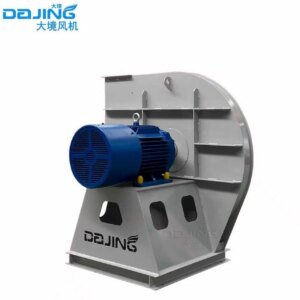

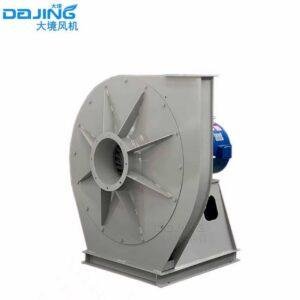

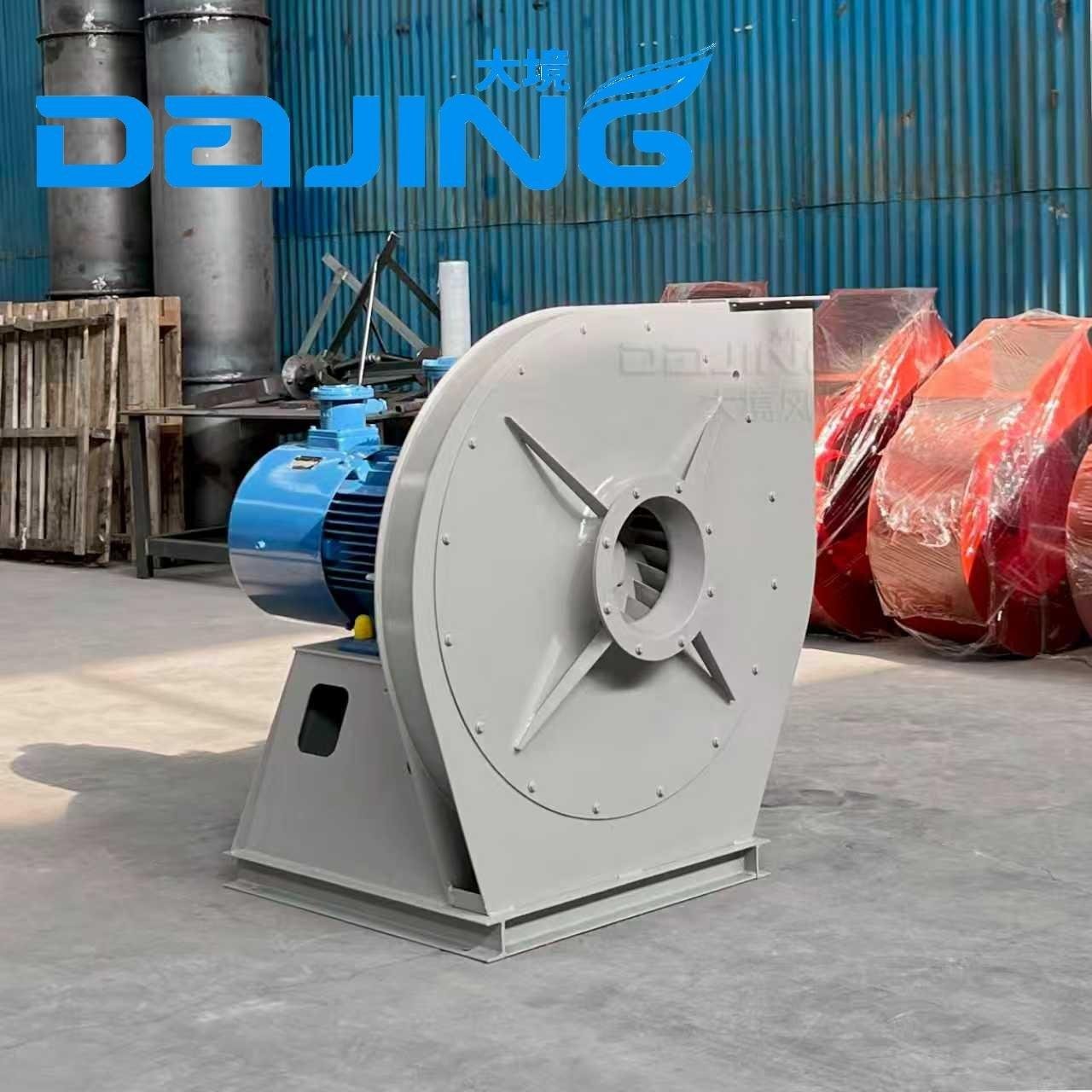

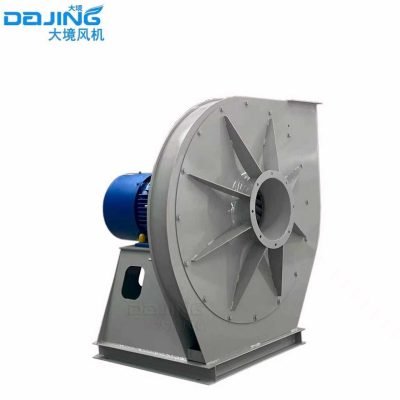

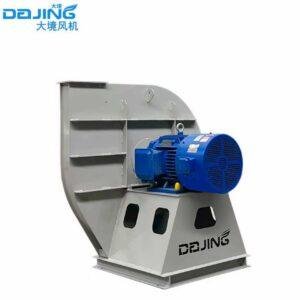

XQ Type Chute High Pressure Centrifugal blower
XQI/II series is a high-pressure centrifugal fan specially designed for the cement industry. It is mainly used for forced ventilation and can also be widely applied to material conveying and air transportation systems.
The medium temperature should not exceed 80 °C, and the dust or solid particle content in the gas should be ≤150 mg/m³
Specifications:
Pressure range: 5466 – 518
Air volume: 232 – 883 m³/h
Impeller diameter: Refer to model range (4.8A – 5.4A)
Speed: 2840 r/min
Drive type: Direct / Coupling driven
Cooling: Air cooling (standard)
CONFIGURATION OPTIONS
1. CONSTRUCTION & MATERIALS
-
Impeller: Carbon steel; optional FRP, stainless steel, rubber lining, wear-resistant or ceramic coating.
-
Casing / Damper: Standard carbon steel; optional FRP or stainless steel.
-
Main Shaft: High-strength alloy steel.
-
Bearings: ZWZ / SKF / FAG / NSK.
2.SYSTEM & ACCESSORIES
-
Motor: High-efficiency Chinese brand or ABB / Siemens / WEG.
-
Optional Parts: Base frame, silencer, flexible joint, damper, rain cover, shock absorber, sensors, inverter, soft starter, monitoring instruments.
| Serial number | Machine number No | Rotating Speed r/min | Full Pressure Pa | Air Volume m³/h | Power kW |
|---|---|---|---|---|---|
| 1 | 4.8A | 2840 | 5466~4828 | 232/883 | 0.75~3 |
| 2 | 5.4A | 2840 | 6918~6110 | 330/1257 | 1.5~5.5 |
| 3 | 4.7A | 2840 | 5469~5187 | 585/1544 | 1.5~4 |
