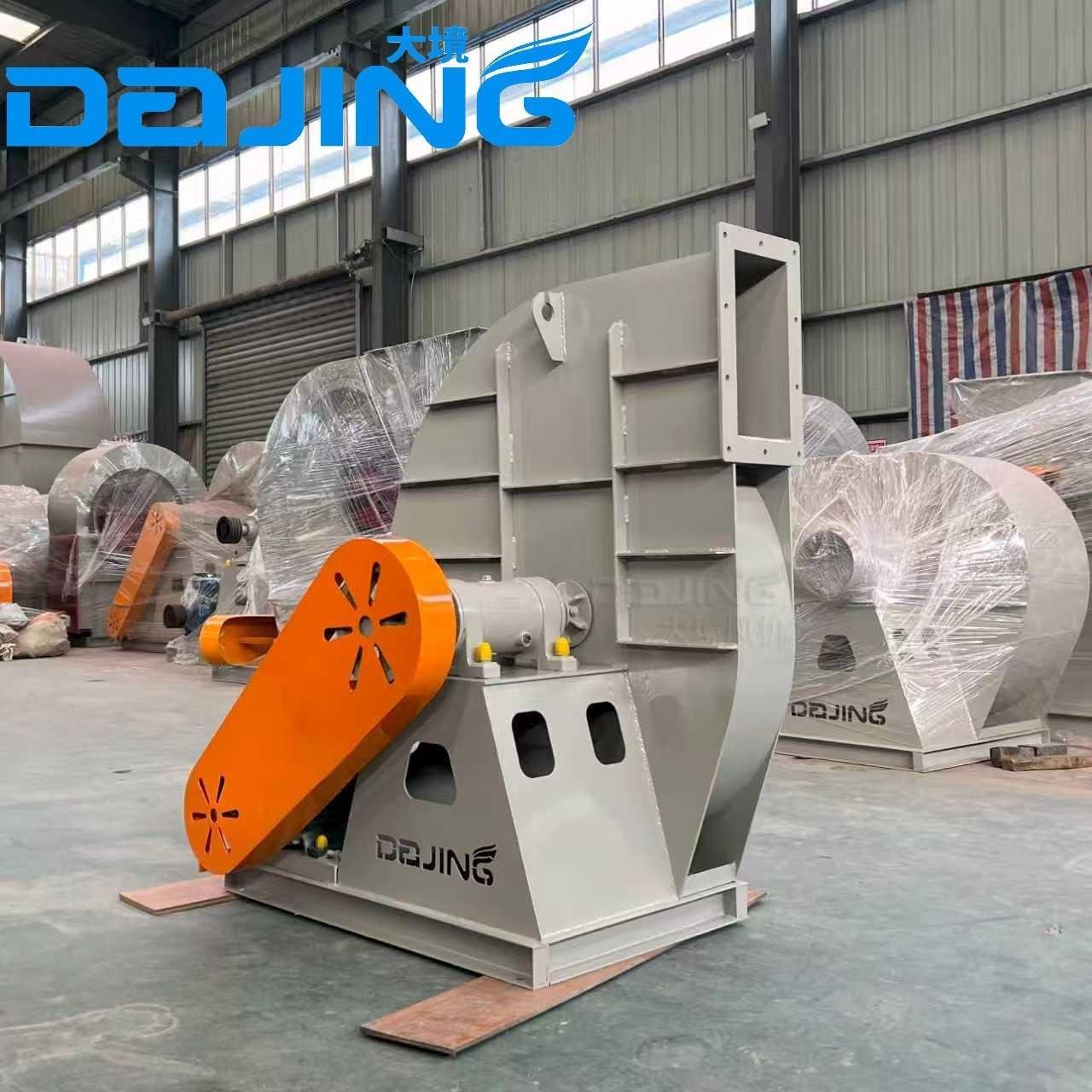

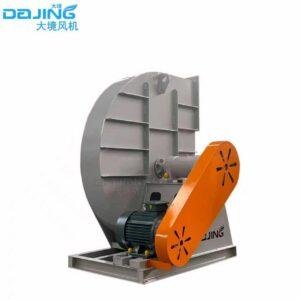

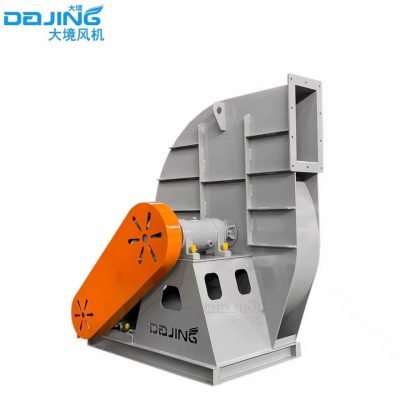

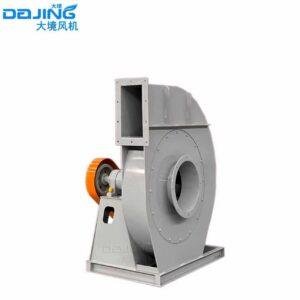

Y6-30 Centrifugal Induced Draft blower
The fan is used in boilers with high efficiency and low noise. It can also be used in air supply and exhaust systems with medium temperature not exceeding 250°C, non-corrosive and viscous materials.
Specifications:
Pressure range: 727 – 3040 Pa
Air volume: 655 – 14 000 m³/h
Speed: 1850 – 2350 r/min
Impeller diameter: approx. 350 – 860 mm
Drive type: Direct / Coupling / Belt driven
Air cooling (Water / Oil optional if required)
CONFIGURATION OPTIONS
1. CONSTRUCTION & MATERIALS
-
Impeller: Carbon steel; optional FRP, stainless steel, rubber lining, wear-resistant or ceramic coating.
-
Casing / Damper: Standard carbon steel; optional FRP or stainless steel.
-
Main Shaft: High-strength alloy steel.
-
Bearings: ZWZ / SKF / FAG / NSK.
2.SYSTEM & ACCESSORIES
-
Motor: High-efficiency Chinese brand or ABB / Siemens / WEG.
-
Optional Parts: Base frame, silencer, flexible joint, damper, rain cover, shock absorber, sensors, inverter, soft starter, monitoring instruments.
| Serial Number | Machine Number | Rotating Speed (r/min) | Full Pressure (Pa) | Air Volume (m³/h) | Power (kW) |
|---|---|---|---|---|---|
| 1 | 3.5C | 2350 | 853~727 | 655~1192 | 0.75 |
| 2 | 6.5C | 2150 | 2206~2020 | 4263~4945 | 5.5 |
| 3 | 7.5C | 1900 | 2598~2500 | 5216~6600 | 7.5 |
| 3 | 7.5C | 1900 | 2392~2196 | 7349~8771 | 11 |
| 4 | 8.6C | 1850 | 3226~3040 | 9494~14000 | 18.5 |
